MEDRAD® Stellant

Intelligent and intuitive – MEDRAD® Stellant is the injector of choice for advanced CT applications providing accurate personalized delivery of contrast.*

Clear Direction. Boost Your Image.

MEDRAD® Stellant enables the flexibility of injecting contrast and saline – offering many clinical and workflow advantages, such as: using saline to perform a patency check, reducing image artifacts and providing brighter arterial imaging in CT.1,2

Medrad Stellant device

What is MEDRAD® Stellant?

MEDRAD® Stellant is a contrast media injection system designed for use during CT examinations, known for its innovative clinical offerings and feature set. It is the injector of choice for advanced CT applications such as cardiac and perfusion imaging.


How does MEDRAD® Stellant work?

The intuitive touch screen interface allows the user to set the injection protocol needed for the CT examination. MEDRAD® Stellant gives the user the option to store and recall up to 250 CT injection protocols for fast access. Injection protocols are easily adjusted to suit the individual patient by simply selecting the parameter to be changed and entering in the new value. Up to 6 injection phases can be programmed depending upon the area to be imaged.

029_Image-Highlight1

Contrast Delivery

Referrers rely on prompt, accurate diagnoses to guide therapy and enable improved patient outcomes. Precise contrast delivery is expected for consistency to allow optimal image quality.


Protocol management and precise contrast delivery

Confidence

  • Perform complex CTA and cardiac CT protocols
  • Create a tight contrast bolus
  • Enable precisely timed contrast delivery
  • Individualize contrast dose with Certegra™ P3T™ 2.0



Dual syringe utilization benefits

DualFlow, simultaneous injection of contrast and saline in user-selected ratios can:1

  • Enable better visualization of the right heart due to reduction of streak artifacts
  • Visualize the right coronary arteries and right ventricles in a single study by achieving more uniform attenuation

Case Reports

    DualFlow can provide the ability to perform simultaneous injection of contrast and saline with user-selected ratios with the MEDRAD® Stellant Dual Injection System.

    031_Tab1-Image1_single-phase

    032_Tab1-Image2_saline-flash

    033_Tab1-Image3_DualFlow


    With single contrast phase With saline flush With DualFlow phase

    Jensen, CT. NASCI Abstract # 05-A-69-NASCI.

    Powered by the MEDRAD® Stellant CT Injection System with Certegra™ Workstation, Certegra™ P3T™ 2.0 calculates individually optimized patient protocols for cardiac CT, pulmonary angiography and abdomen studies.

    Standardizing and easing implementation of personalized patient protocols offers important benefits, including:

    • Facilitating implementation of multiple CT abdomen protocol strategies
    • Reducing occurrences of suboptimal CT pulmonary angiography studies3


    Pulmonary Angiography: Certegra™ P3T™ vs. Standard

    Certegra™ P3T™

    Weight: 300 pound

    Contrast: 116 cc

    Main PA HU: 274

    Standard

    Weight: 295 pound

    Contrast: 80 cc

    Main PA HU: 171

    When compared to standard protocols, Certegra™ P3T™ Pulmonary Angiography protocols* result in a higher percentage of exams ranked diagnostic without limitation.4,5

    * Albeit at a slightly higher contrast dose than the standard protocol of 80 mL

    Workflow

    Enhanced protocol management and injector design that enable efficiency improvements.

    A simple workflow can help to save procedure time, avoid errors.


    Simple to use, automated injection system*

    Streamline workflow

    • Integrated saline test injection with real-time pressure monitoring
    • Snap-on/twist-off syringe design
    • Plungers automatically advance and retract when attaching and detaching syringes
    • Automatic filling and priming
    • Multiphase programming, including hold/pause feature
    • Programmable pressure limit

    * Requires Certegra™ Workstation


    Accurate post-study documentation*

    Improve reporting accuracy

    • Achieve workflow efficiencies
    • Enables reduction of errors and information gaps6

    * Requires Certegra™ Workstation

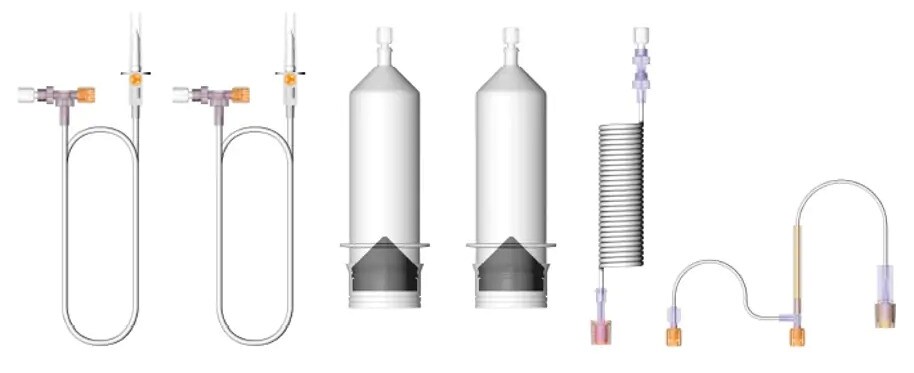

    Multi-Patient Syringe System

    Cost efficiency

    • Perform multiple studies with a single syringe kit (for up to 12 hours)
    • Recessed connections to avoid accidental contamination
    • Multi-patient tube for reuse plus single-patient tube that needs to be replaced after each study
    • Special check valves that prevent backflow from the patient
    037_Image-Highlight4_Syringe-Kit


    Scalability

    Scalable options address your department’s needs – boost your image

    Our customers look for solutions that can keep up with the changing demands of CT imaging at any time.


    Take it to the next level

    The Radimetrics™ Enterprise Platform seamlessly integrates with your hospital’s IT infrastructure as well as your Bayer smart injection devices, providing the tools to help you achieve both – your contrast and radiation dose management goals.


    Certegra™ P3T™ 2.0 Software recommending personalized injection protocols

    Personalized patient protocols allow technologists to individualize contrast dose protocols individually at the point of care with ease.

    • Abdomen studies
    • Pulmonary angiography studies
    • Cardiac studies



    Certegra™ Imaging System Interface (ISI) – Scanner connectivity

    The Certegra™ ISI enables injectors and scanners to communicate, enhancing clinical capability by ensuring appropriate scan timing and simplifying workflow. It enables scanner and injector synchronization. Because multi-slice scanners capture images so quickly, it is critical to have optimal contrast in the area of interest at the precise moment of the scan.

    We offer four products:

    • Certegra™ ISI 700 (for Philips scanners)
    • Certegra™ ISI 800 (for Siemens and Toshiba scanners)
    • Certegra™ ISI 900 (for Siemens, Toshiba, Hitachi and General Electric scanners)
    • Connect.CT sold as Philips SyncRight (for Philips scanners)

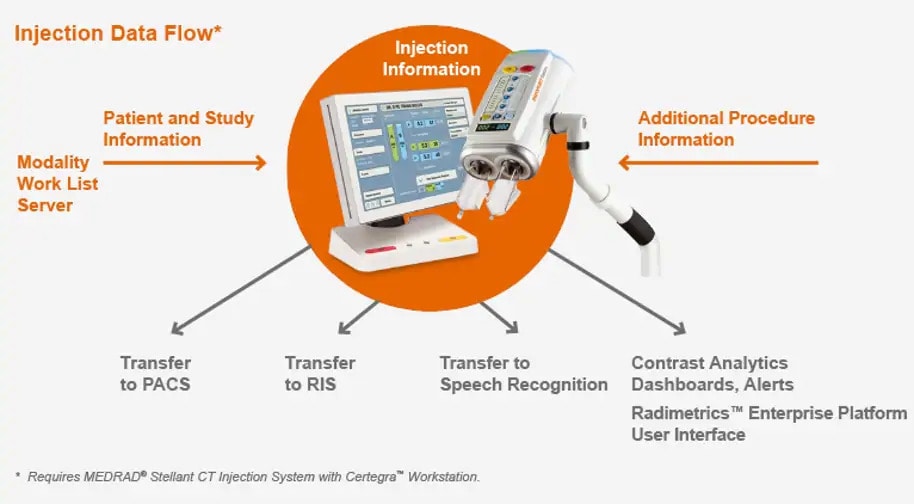

    Contrast Dose Management (CDM)

    CDM automates documentation of contrast injection at the point of care and throughout the post-procedure workflow.
    CDM provides tools to help drive efficiency, reproducible quality and personalized care7:

    • Auto-populate contrast injection records transferred to PACS, RIS and Speech Reporting (SR)
    • Achieve workflow efficiencies
    • Improve reporting accuracy
    • Automate documentation
    • Use data to inform improvement initiatives
    • Accelerate report turnaround time
    • Investigate and tie information to outcomes
    038_Image-Highlight5_Injection-DataFlow



    Quality and Service

    What separates good from great? A reliable partner with a continued commitment to quality and service at every step to keep our operations performing.

    Dedicated experts for continuous uptime

    Strengthen confidence

    MEDRAD® Stellant CT Injection System with VirtualCare™ Remote Support delivers confidence with a connection to world-class monitoring, diagnosis and support.

    image fingers



    Benefit Security Support

    -Software issues are often resolved remotely, in minutes rather than hours

    - Hardware can be repaired in one trip, with the right parts, the first time

    If your injector is enhanced with Certegra™ Workstation:

    - Proprietary software updates and patches arrive seamlessly

    - Antivirus protection remains current*

    - System alerts are monitored and resolved proactively

    *periodic updates provided per defined schedule

    -Problems are diagnosed remotely

    -Solutions are developed quickly

    -The recovery plan is completed quickly

    High quality and reliability

    Maximize trust

    Not all syringes are equal. Bayer delivers a high-quality and reliable injection solution that can save costs, equipment and downtime. When choosing contrast and saline syringes, you need to consider:



    042_Gallery2-Picture1_particulates

    Particulates

    Particulates from the manufacturing process can be directly injected into the patient if the syringe barrels are not thoroughly cleaned and inspected.

    043_Gallery2-Picture2_biocompatibility

    Biocompatibility

    If syringes are made from non-biocompatible material, then harmful substances, e.g. BPA or DEHP, can leach into the saline or contrast agent and enter the bloodstream.

    044_Gallery2-Picture3_silicon

    Application of silicone

    If the application is not precisely controlled, then silicone can be over- or under-applied, impacting fluid-delivery performance and the well-being of your patients.

    045_Gallery2-Picture4_compatibility

    Compatibility

    If a non-compatible syringe is used on a MEDRAD® injector, then its failure can result in over- or under-injection of contrast and may require re-scanning and re-dosing the patient.

    042_Gallery2-Picture1_particulates

    Particulates

    Particulates from the manufacturing process can be directly injected into the patient if the syringe barrels are not thoroughly cleaned and inspected.

    043_Gallery2-Picture2_biocompatibility

    Biocompatibility

    If syringes are made from non-biocompatible material, then harmful substances, e.g. BPA or DEHP, can leach into the saline or contrast agent and enter the bloodstream.

    044_Gallery2-Picture3_silicon

    Application of silicone

    If the application is not precisely controlled, then silicone can be over- or under-applied, impacting fluid-delivery performance and the well-being of your patients.

    045_Gallery2-Picture4_compatibility

    Compatibility

    If a non-compatible syringe is used on a MEDRAD® injector, then its failure can result in over- or under-injection of contrast and may require re-scanning and re-dosing the patient.

    .
        Height Width Depth Weight
      Dual Injector Head 15.5 cm (6.1“) 30.7 cm (12.1“) 36.8 cm (14.5“) 8.1 kg (17.9 lb) (without syringe)
      Base Unit 29.2 cm (11.5“) 27.9 cm (11.0“) 22.2 cm (8.8“) 6.2 kg (13.6 lb)
      Certegra® Workstation (CWS) 34.2 cm (13.5“) 40.0 cm (15.8“) 30.0 cm (10.2“) 8.0 kg (17.6 lb)

      .

        Flow rate (range & increments) 0.1–10 mL/sec in 0.1 mL increments
        Volume (range & increments) 1 mL to syringe capacity in 1 mL increments
        Programmable pressure limit (psi/kPa) 200 mL syringe: 325 psi, 2241 kPa
        Scan delay 0–300 seconds (5 minutes) in 1 second increments
        Pause 1–900 seconds (15 minutes) in 1 second increments
        Hold Maximum HOLD time is 20 minutes
        Syringes (volume capacity) 200 mL sterile disposable syringe
        Maximum number of phases 6
        Miscellaneous Specifications
        Electrical requirements (VAC/Hz) 100–240 VAC, 50/60 Hz, 300 Volts-AMPs
        Syringe heat maintainer 35 degrees C ±5 degrees, 95 degrees F ±9 degrees
        Head mounting options Overhead counterpoise system or floor pedestal (floor pedestal includes an integral IV pole)
        DualFlow Simultaneous injection of contrast and saline is integrated in the CWS and included
        Certegra™ P3T™ Cardiac Application Cardiac CTA Protocol Optimization Software
        Certegra™ P3T™ Abdomen Application Abdominal Protocol Optimization Software
        Certegra™ P3T™ Pulmonary Angiography Application Pulmonary Angiography Protocol Optimization Software
        Informatics Starter Package Access to modality worklist and database of injections
        PACS Outbound Interface Send secondary capture of contrast injection to PACS
        RIS Outbound Interface Send contrast injection information to RIS
        Speech Recognition Outbound Interface Send contrast injection information to Speech Recognition System
        Imaging System Interfacing (ISI) Several types of interfacing with the scanner
        VirtualCare™ * Remote service on the injector and software to ensure faster uptime
        *available in some countries

        Videos

        MEDRAD® Stellant CT Injection System is easy to learn, set up and use.

        .

          Injector head and syringe visualization

          Injector head and syringe visualization

          YYMMDD Author/Uploaded by

          Fast and easy syringe installation

          Fast and easy syringe installation

          YYMMDD Author/Uploaded by

          Convenient fluid loading

          Convenient fluid loading

          YYMMDD Author/Uploaded by

          Streamlined injection preparation

          Streamlined injection preparation

          YYMMDD Author/Uploaded by

          Simple syringe removal

          Simple syringe removal

          YYMMDD Author/Uploaded by

          Play All

          Play All

          YYMMDD Author/Uploaded by

          .

            Certegra™ Workstation Configuration

            Certegra™ Workstation Configuration

            YYMMDD Author/Uploaded by

            Installing Multi-Patient Disposables

            Installing Multi-Patient Disposables

            YYMMDD Author/Uploaded by

            Initial Set-Up: Priming

            Initial Set-Up: Priming

            YYMMDD Author/Uploaded by

            Individual Patient Use

            Individual Patient Use

            YYMMDD Author/Uploaded by

            Exchanging the Single Patient Disposable

            Exchanging the Single Patient Disposable

            YYMMDD Author/Uploaded by

            Replacing Empty Fluid Sources

            Replacing Empty Fluid Sources

            YYMMDD Author/Uploaded by

            Tear-Down / Removing Multi Patient Kit

            Tear-Down / Removing Multi Patient Kit

            YYMMDD Author/Uploaded by

            .

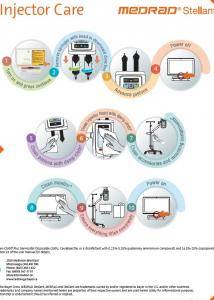

              Cleaning instruction

              YYMMDD Author/Uploaded by

              References

              1 Kerl JM, Ravenel JG, Nguyen SA, et al. Radiology. 2008;247(2):356-64.
              2 Jensen, CT. NASCI Abstract # 05-A-69-NASCI
              3 Deible CR, Alexander J, Ocak I, et al. Department of Radiology, University of Pittsburgh Medical Center, Pittsburgh, PA, Medrad, Inc., Pittsburgh, PA RAD-INF-14-06087. May 2014
              4 Presented at Society of Thoracic Radiology (2008) Poster Session; Christopher R. Deible MD, PhD.
              5 510(k) FDA clearance number: K082905.
              6 South Jersey Radiology Associates. Customer Experience: Using Radimetrics™ Enterprise Platform Contrast Dose Management* to Improve Billing Cycle Time and Enhance Reporting Efficiencies. Bayer Pharma AG, March 2015.
              7 South Jersey Radiology Associates. Customer Experience: Using Radimetrics™ Enterprise Platform Contrast Dose Management* to Improve Billing Cycle Time and Enhance Reporting Efficiencies. Bayer Pharma AG, March 2015.
