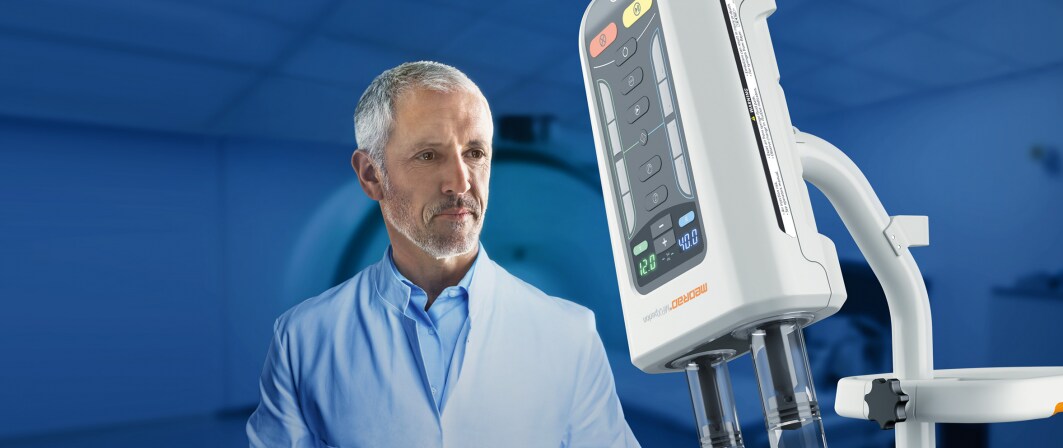

MEDRAD® MRXperion Injector System

The MEDRAD® MRXperion MR injection system has been designed to support your staff in providing efficient and accurate care. Clear Direction Efficient. Smart. My MR injector.

MEDRAD® MRXperion is a dual syringe power injector delivering contrast agents and saline during contrast-enhanced MRI diagnostic procedures.

Technically advanced MR injector with improved workflow, point of care and injection data management*.

Time saving features such as the patented snap-on/twist-off syringe design, automated filling and priming, and on-board calculators help to simplify user requirements.

MEDRAD® MRXperion MR injection system

My MR injector

MEDRAD® MRXperion is a smart, new performer in the MR suite, delivering confidence and peace of mind through innovative contrast delivery and management.

MEDRAD® MRXperion…


Saves Time

From the way the syringes are installed to the way in which patient and injection data is made available to be utilized, the MEDRAD® MRXperion syringes and automated documentation* solution have been designed to save you time.

This is efficient.


Increases Confidence

Reduce manual work and potential errors with automated documentation*, while improving the accuracy and consistency of recorded protocols and associated data. MEDRAD® MRXperion gives you the confidence that you are acting on accurate information.

This is smart.


Enhances Patient Care

The combination of all the innovative features of MEDRAD® MRXperion means one thing – allowing you to provide the best care possible for your patient.

This is MEDRAD® MRXperion.







My Innovation in MR

Optimize your workflow with automated documentation* and create new dimensions in digital healthcare.

Optimise your workflow

Benefit from improved quality of your data

  • Pull up patient data from the modality worklist
  • Match the right injection protocol for each patient
  • Automatically capture contrast media information with the barcode reader**


Access data where you need it *

  • Easily add all important injection and patient data to the patient’s DICOM records
  • Simplify your reporting process, while eliminating potential manual errors


Understand and analyze contrast usage *

  • Perform statistical analysis


Maximize uptime with VirtualCare™ *

  • With the inclusion of a VirtualCare remote support system, alerts are monitored and resolved proactively







My MR Workflow

load

plan

platform

report


* Available as an option.

** Available in select markets.

.
    Components Dimensions
    Control room unit 15.75” (40.00 cm) W
    13.46” (34.19 cm) H
    10.23” (25.98 cm) D
    19.2 lbs (8.0 kg) weight
    Scan room unit 23.30” (59.0 cm) W
    71.40” (181.0 cm) H
    23.30” (59.0 cm) D
    95.7 lbs (43.4 kg) weight
    Power supply 7.60” (19.0 cm) W
    3.40” (9.0 cm) H
    15.40” (39.0 cm) D
    5 lbs (2.3 kg) weight



    Electrical
    Voltage requirements 100 – 240 VAC
    (50/60 Hz)
    120 – 210 VA
    Electrical leakage Unit <100 microamperes
    Patient <100 microamperes
    Earth <500 microamperes



    System capabilities
    Syringe capacities Syringe A: 65 mL
    Syringe B: 115 mL
    Programmable volume range (mL) Syringe A: 0.5 mL to max syringe volume in:
    0.1 mL increments from 0.5 mL to 31 mL
    1 mL increments above 31 mL
    Syringe B: 1 mL to max syringe volume in 1 mL increments
    Programmable flow range (mL/sec) 0.01 to 10 mL/s in:
    0.01 mL/s increments between 0.01 and 3.1 mL/s
    0.1 mL/s increments between 3.1 and 10 mL/s
    KVO (keep vein open) 6 factory presets of 0.25 mL
    every 15, 20, 30, 45, 60 or 75 sec
    Test inject Configurable from 0.5 mL to 20 mL in 0.1 mL increments
    Pressure range (psi) 6 factory presets from 100 to 325 PSI or, 690 to 2240 kPa
    Injection / post Injection reminders Up to 5 settings of 1 sec to
    20 minutes in 1 sec increments
    Injection protocol storage 60 protocols up to 6 phases each
    Injection hold / pause Up to 20 minutes in 1 sec increments
    eGFR calculator For adults: MDRD, Cockroft-Gault, Modified Cockroft-Gault and CKD-EPI
    methods
    For children: Bedside Schwartz method
    Informatics connectivity capability Yes, with optional
    RadimetricsTM Enterprise Platform*
    Remote service capability Yes, with optional
    VirtualCareTM Remote Support*
    Mounting Floor pedestal – includes integrated IV pole



    Accessories
    IV Pole Choice of single hook or double hook IV pole



    Ordering information
    Injector system Catalog # MRXP 200:
    MEDRAD® MRXperion MR Injection System

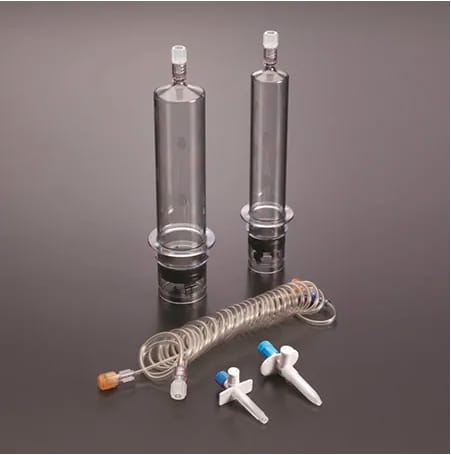

    Disposable syringe kit

    078_Table-Image_0_smaller

    Catalog # XP 65 / 115 VS:
    Contents:

    • 65 mL Qwik-Fit syringe for contrast media
    • 115 mL Qwik-Fit syringe for saline
    • One large spike for saline
    • One small spike for contrast media
    • 96” low pressure connector tube

    with T-connector and check valve


    * Radimetrics® Enterprise Platform and VirtualCare™ Remote Support are options that can be ordered. They are not included as part of the base product.


    .
