MEDRAD® Mark 7 Arterion

Brings confidence and convenience to your interventional and diagnostic procedures.

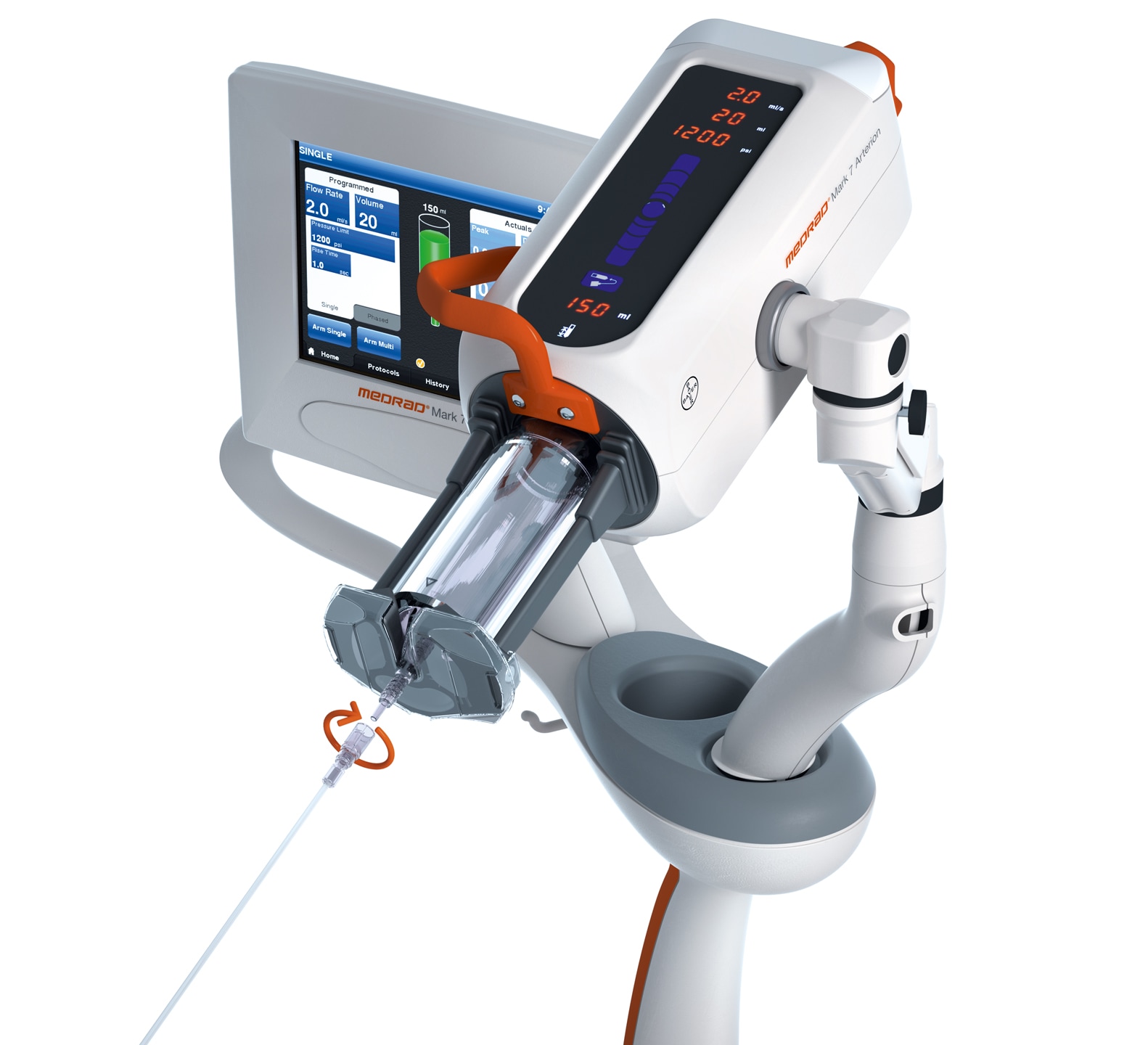

Clear Direction. Ergonomics, Convenience, and Reliability. MEDRAD® Mark 7 Arterion has stylish ergonomics designed to increase mobility around a busy lab. Less time positioning and setting up the system means more time for the patient. The convenient front-load syringe design and MEDRAD® Twist & Go disposable syringe provide optimized pre- and post-procedure work flow.

product image

What is MEDRAD® Mark 7 Arterion?

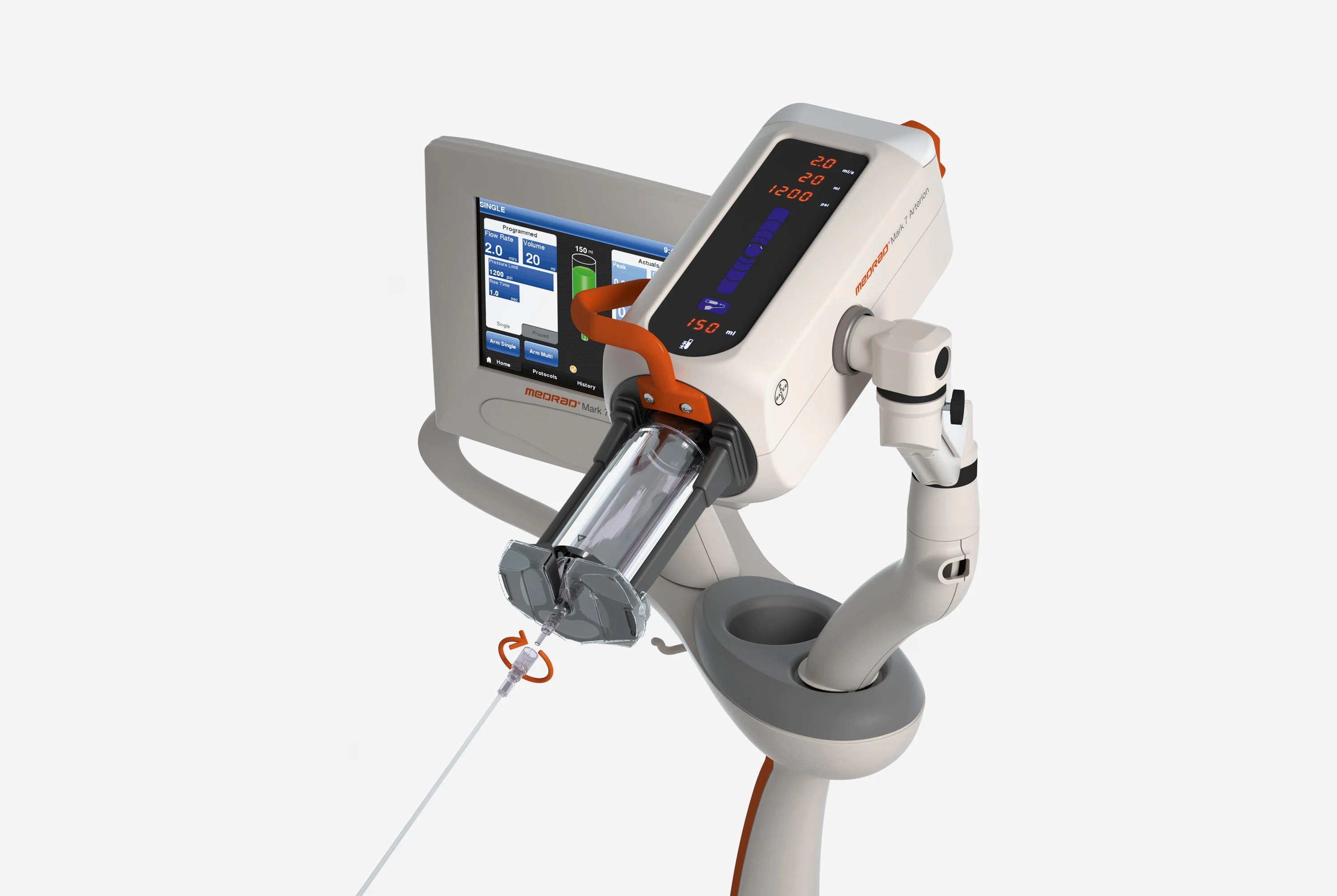

MEDRAD® Mark 7 Arterion is a single-head injection system for X-ray angiography designed for high-end interventional radiology (IR) suites.

066_Image-Highlight1_Aterion_20161013_F2R_G1A7517




How does MEDRAD® Mark 7 Arterion work?

MEDRAD® Mark 7 Arterion allows the controlled delivery of radiopaque contrast media for interventional imaging purposes in interventional radiology, interventional cardiology and vascular surgery. The injector facilitates contrast delivery in fixed flow mode and variable flow with an optional software upgrading. It utilizes a dedicated 150 cc syringe (front load) and can deliver contrast media in phased mode.

067_Image-Highlight2_Aterion_Icons1-3




What are MEDRAD® Mark 7 Arterion System Configurations and Main Components?

The MEDRAD® Mark 7 Arterion Injection System consists of three main components: Injector Head, Display Control Unit, and Power Supply. They are mounted with various options.

  • Pedestal Configuration

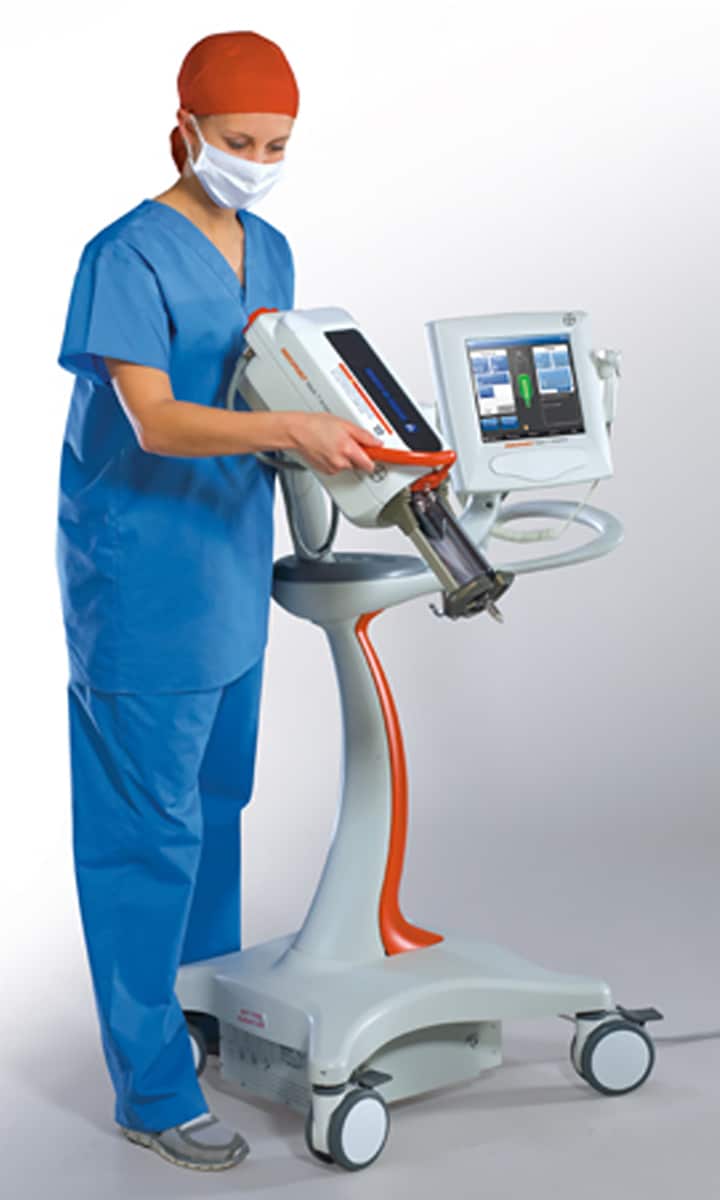

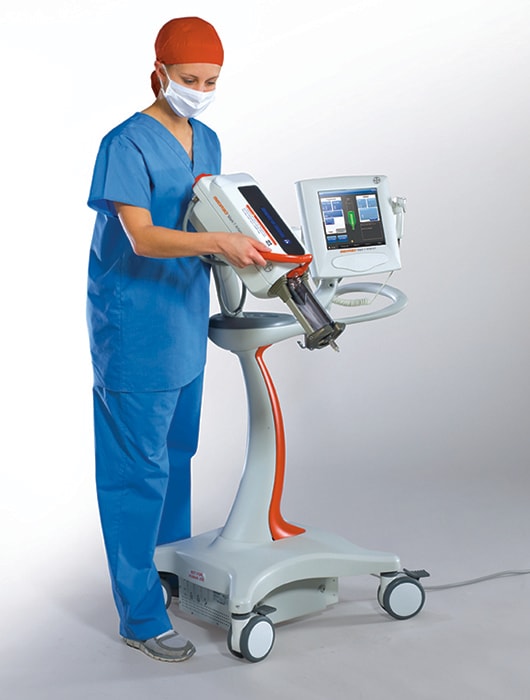

    The pedestal configuration combines all required injector components into an integrated, mobile unit

  • Table Mount Configuration

    This configuration option positions the injector head on the patient table, the DCU in the control room and the PS in the equipment (electronics) room

  • MEDRAD® Mark 7 Arterion Dual Display Option

    This option provides added flexibility allowing programming and control of the injector from two locations


How is MEDRAD® Mark 7 Arterion used?

The system is intuitively managed via the color touch screen DCU. All relevant information is displayed on the home screen where injection parameters can be programmed or changed. On the protocol screen up to 40 protocols can be stored, changed, deleted, or selected. A history tab allows to review the last 50 injections.

069_Image-Highlight4_Mark7-032_ma01_2016-branding_ma01_isov2_reduziert




.

    Standard:

    IEC 60601-1

    IEC 60601-1 (2nd and 3rd edition Amendment 1)



    Medical electrical equipment, Part 1: General requirements for basic safety and essential performance

    Standard:

    IEC 60601-1-2

    Medical electrical equipment - Part 1-2: General requirements for basic safety and essential performance - Collateral Standard: Electromagnetic disturbances - Requirements and tests

    Size and

    mobility

    Footprint: 66.2 cm x 55.9 cm (26.1 in. x 22.0 in.)

    Weight: 146 lbs. (66.22 kg)

    Flow Rates

    60 mL:

    0.1-45.0 mL/s in 0.1 mL/s increments (single and phased)

    0.1-59.9 mL/m in 0.1 mL/m increments (single mL/m)

    150-200 mL:

    1.0-10.0 mL/s in 0.1mL/s increments (variable)

    Volume 150 mL
    Pressure Limits

    60 mL:

    100-1200 psi in 1 psi increments

    200 mL:

    689-8273 kPa in 1 kPa increments

    Rise Time 0.0-9.9 seconds in 0.1s increments
    Delay Time 0.0-99.9 seconds in 0.1s increments
    Fill Speed

    Manual: 1-20 mL/s in 1 mL/s increments

    Automatic: 1-10 mL/s in 1 mL/s increments

    Syringe Size 150 mL
    Memory

    Protocol: 39 Protocols (4 default, 35 storable)

    Injection History: Approximately 50 injections

    Flow Rate Accuracy

    The Head shall inject fluid with a flow rate accuracy of ± (5% of programmed flow rate+0.25ml/s) in mL/s range as measured over 1 second, or 10mL, whichever is greater, while in fixed flow mode.

    The Head shall inject fluid with a flow rate accuracy of ± (5% of programmed flow rate +0.25mL/m) in mL/m range as measured over 4 seconds or 1mL, whichever is greater.

    The Head shall inject fluid with a flow rate accuracy of +/- (20% of the programmed flow rate +0.25mL/s) multiplied by the percentage commanded by the hand controller, while in variable flow mode.

    Volume Accuracy The Head shall deliver the programmed volume with an accuracy of ± (1.5% of programmed volume+2mL) in mL.

    Standard:

    IEC 60601-1

    IEC 60601-1:2005+Amendment 1:2012*
    Medical electrical equipment, Part 1: General requirements for basic safety and essential performance

    Standard:

    IEC 60601-1-2

    IEC 60601-1-2:2014**
    Medical electrical equipment - Part 1-2: General requirements for basic safety and essential performance - Collateral Standard: Electromagnetic disturbances - Requirements and tests

    *Arterion has been designed and tested in accordance with the most recent medical equipment safety standard. This ensures Arterion is well suited for the current medical device environment.

    **Arterion has been designed and tested in accordance with the most recent medical equipment electromagnetic compatibility standard. This ensures Arterion is well suited for the current medical device environment.
